Configure VPN Clients in DNS Safety

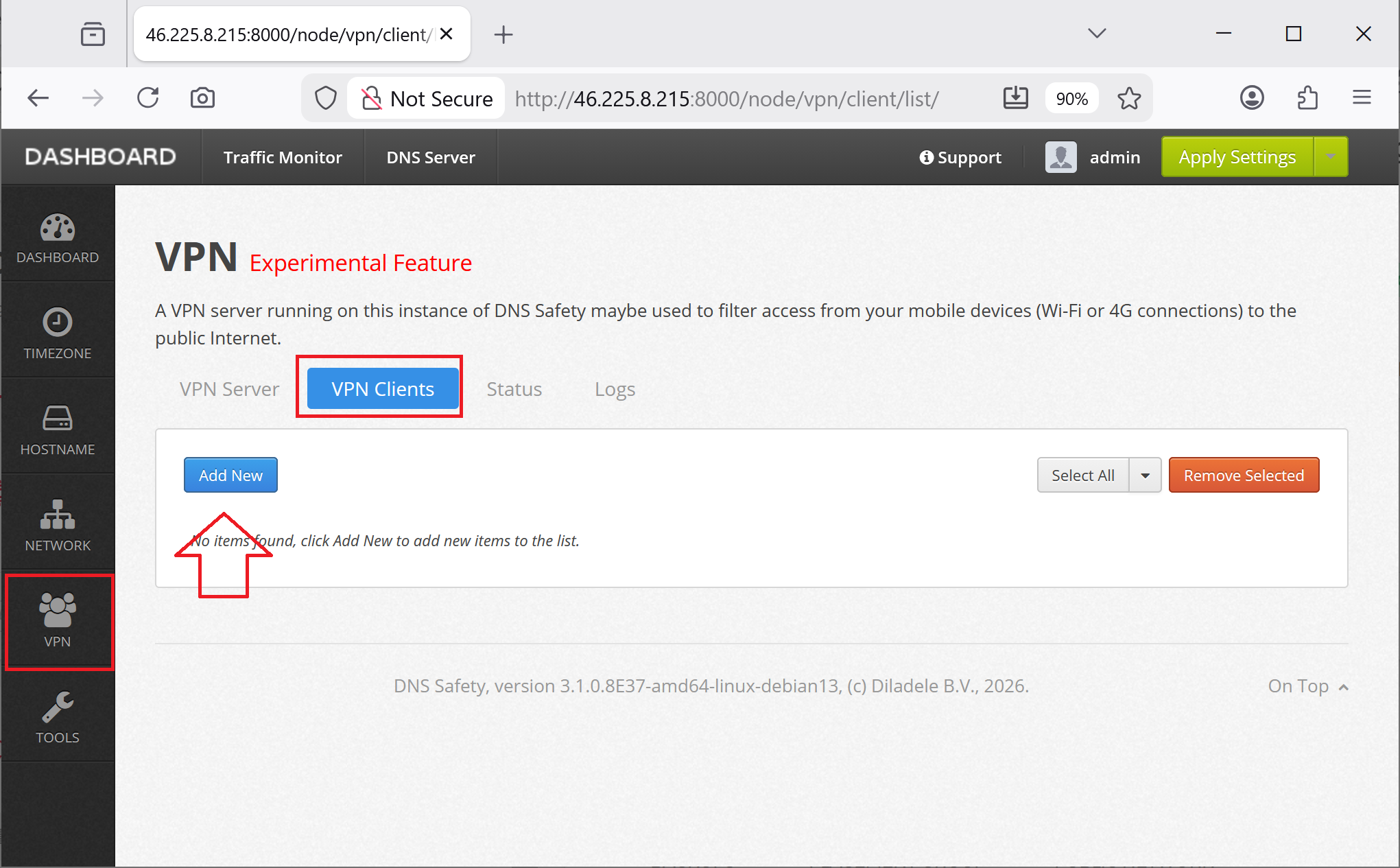

To configure a new client profile for VPN, navigate to Admin UI / VPN / Clients and click the Add New button.

Add New Button

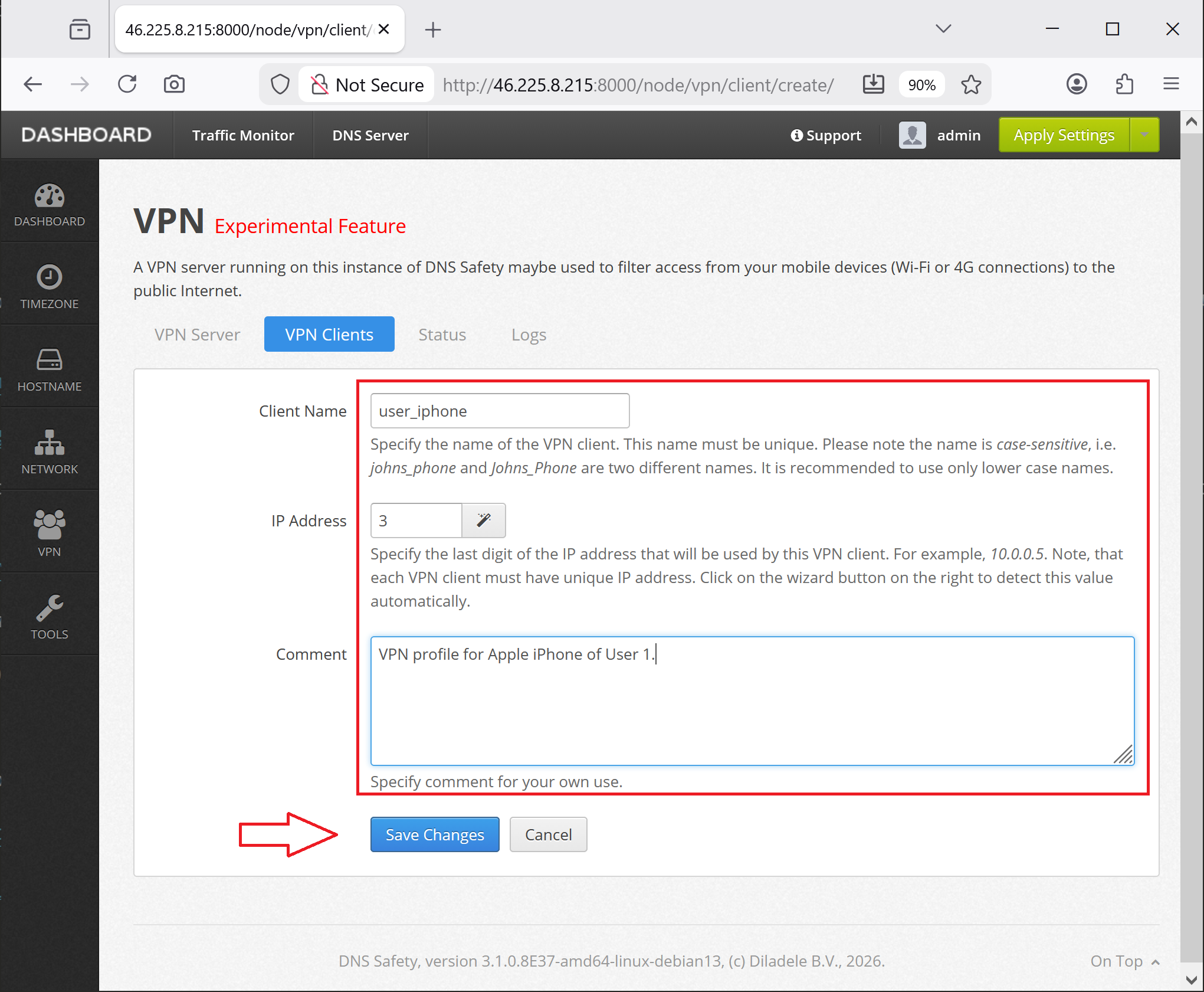

Add the name of the VPN profile, for example user_iphone, click on the IP address button to automatically configure the IP address, like 10.0.0.3 and type some comment for your own reference.

Add User iPhone VPN Profile

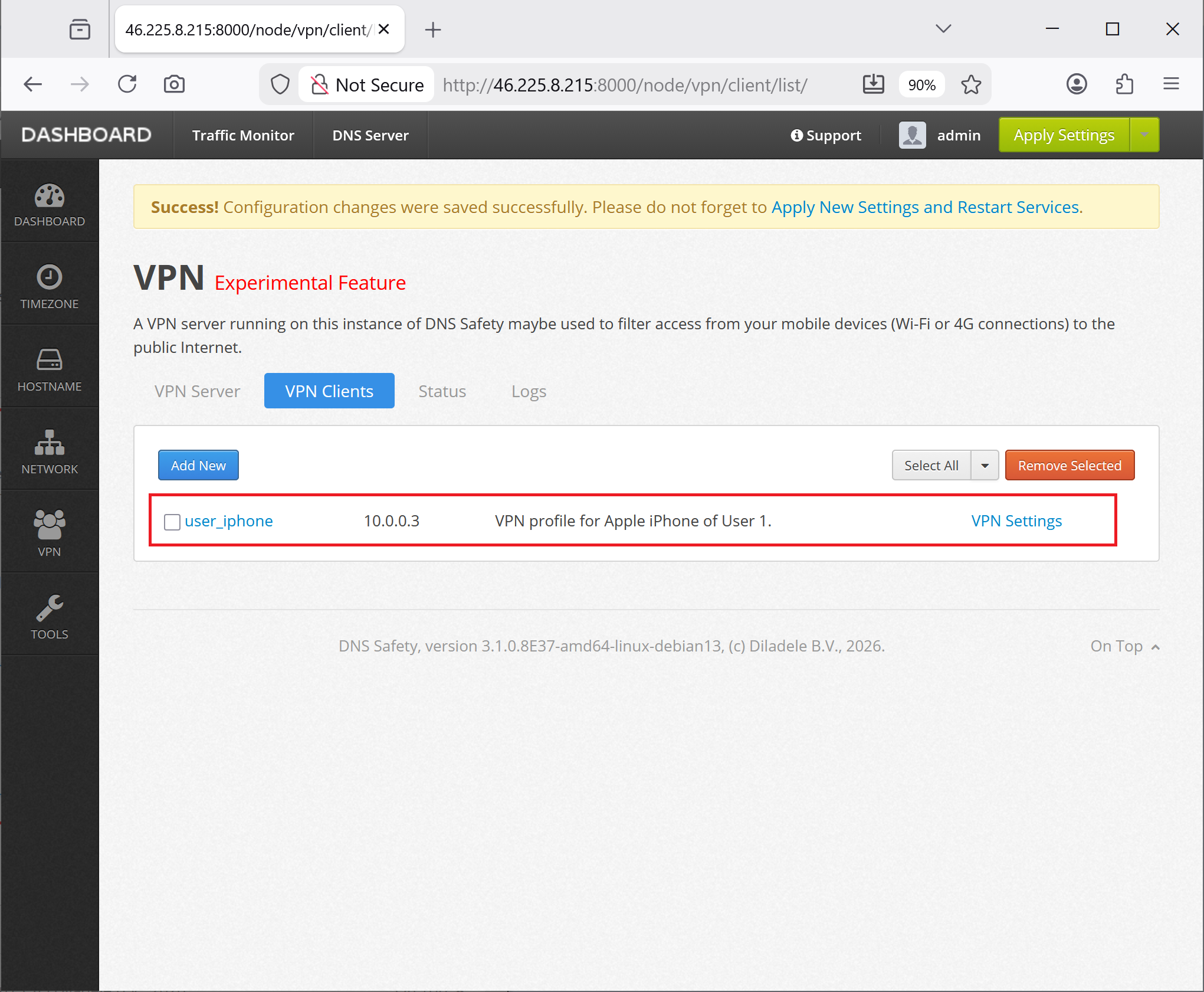

Click Save Changes and verify the new profile is visible in the list of profiles.

List of Users

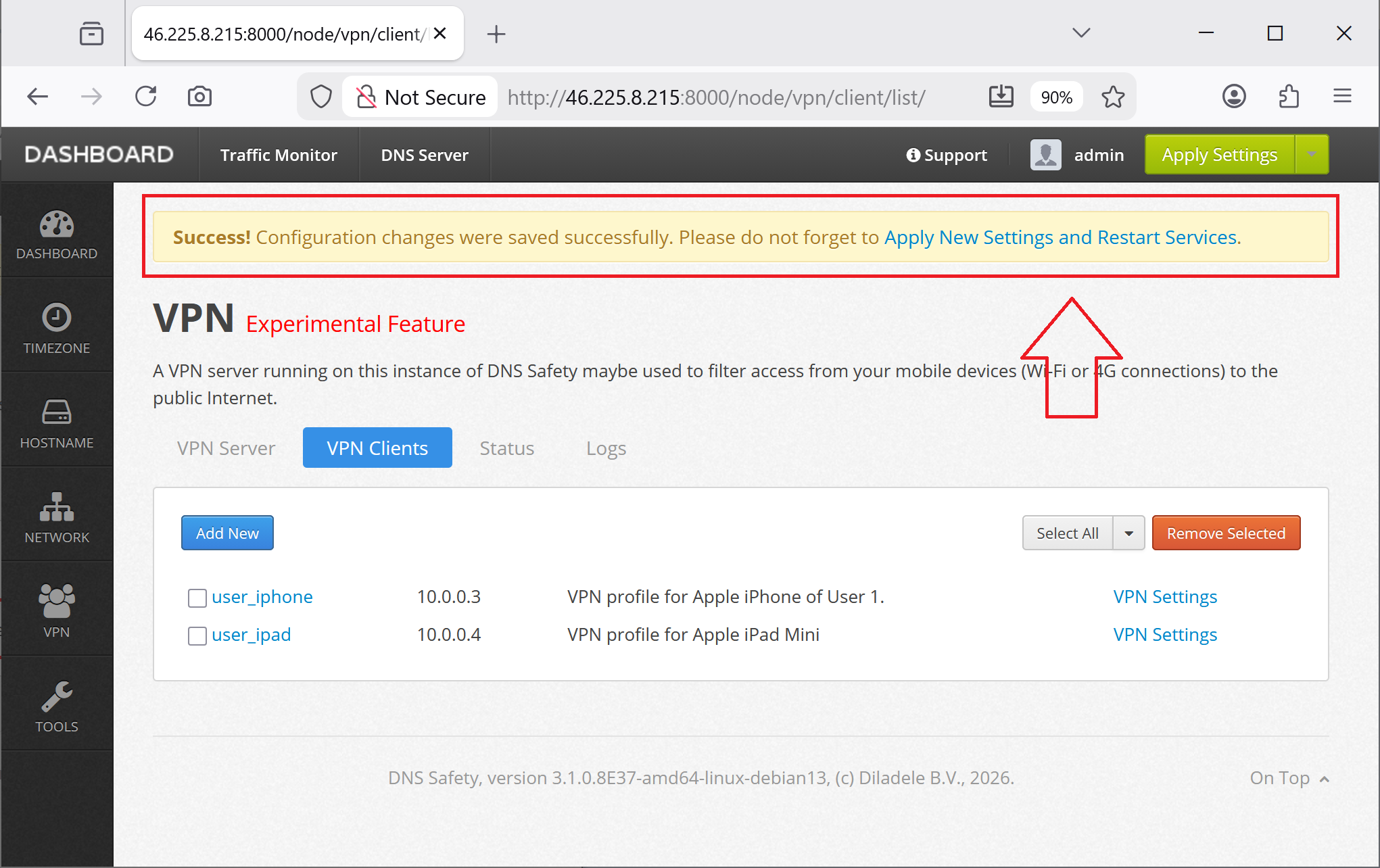

Add another profile, for for example user_ipad, click on the IP address button to automatically configure the IP address, like 10.0.0.4 and again type some comment for your own reference.

List of Users

Do not forget to actually apply the changes to the system by clicking Save and Restart.

Select Save and Restart

Save and Restart Successful

We are now ready to deploy generated client VPN profiles to actual devices.
